Precision Stainless Steel Photo Etching for 0.6mm Custom Micro Flow Channel Metallic Bipolar Plates with Ultra-Precision Microchannel Processing

Precision Stainless Steel Photo Etching for 0.6mm Custom Micro Flow Channel Metallic Bipolar Plates with Ultra-Precision Microchannel Processing

Nom De Marque:	XHS/ Customized
Numéro De Modèle:	Coutume
Nombre De Pièces:	10
Prix:	50-100USD
Conditions De Paiement:	T/T
Capacité à Fournir:	10000-100000pcs / semaine

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

ISO 9001, ISO 14001

Matériels:

En acier inoxydable ou personnalisé

Épaisseur:

0,02 mm - 3 mm selon différentes demandes

Tolérance:

+/-0,005mm

Processus de production:

Photogravure chimique, placage, estampage, découpe laser

Pièce unique maximum:

1500mm*650mm

Pièce unique minimale:

1 mm * 1 mm

Détails d'emballage:

Sacs PE et cartons / personnalisés

Capacité d'approvisionnement:

10000-100000pcs / semaine

Mettre en évidence:

Precision stainless steel photo etching

Custom micro flow channel bipolar plates

0.6mm metallic photo etching

Description du produit

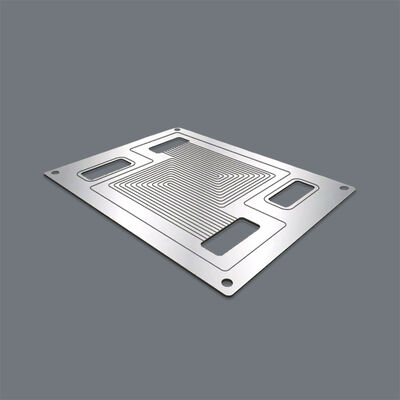

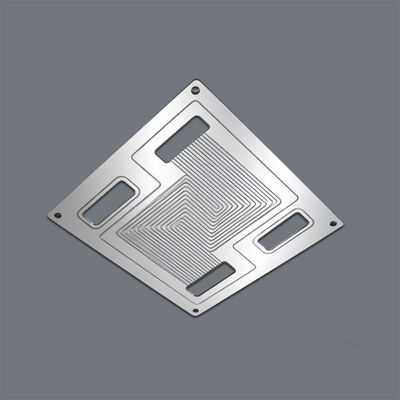

Precision Stainless Steel Photo Etching for 0.6mm Custom Micro Flow Channel Metallic Bipolar Plates

This product is a customized microchannel metallic bipolar plate manufactured using advanced precision photochemical etching technology on 0.5-1.0mm thick stainless steel sheet. Designed specifically as a core component for high-performance fuel cells, electrolysers, and other electrochemical devices, it represents an ideal solution for achieving efficient energy conversion and management. We are committed to providing customers with metal bipolar plate solutions featuring ultimate precision, exceptional consistency, and high design flexibility.

Advantages of Stainless Steel Photo Etching Metallic Bipolar Plate

1. Ultra-Precision Microchannel Processing

Enables fabrication of complex channels, grooves, and apertures at the tens to hundreds of micrometer scale
Vertical channel edges with zero burrs and no mechanical stress prevent material deformation or performance degradation
Ensures uniform distribution of reaction gases/liquids across electrode surfaces, maximizing reaction efficiency

2. Exceptional Material Integrity

Photochemical etching is a non-contact, cold-processing technique that completely eliminates heat-affected zones
Preserves the original mechanical strength, corrosion resistance, and electrical conductivity of stainless steel materials

3. Unmatched Flexibility and Customization

Eliminates the need for costly hard molds, ideal for R&D, prototyping, and small-batch production
Enables effortless design modifications for any complex geometry, supporting rapid iteration
Customizable flow patterns (serpentine, parallel, interdigitated, grid-pattern), sealing channels, and fluid ports

4. Exceptional Production Consistency and Yield

Maintains outstanding repeatability and consistency within and across batches
Suitable for mass production with near-zero variation between individual parts

Specifications of Customizable Titanium Bipolar Plate

Item	Half Etching Metallic Bipolar Plate / Hydrogen Fuel Cell Plate
Material	Titanium/ Stainless steel 316/ Aluminum/ Copper
Thickness	0.5mm - 2mm according to different request
Minimum single part	1mm*1mm
Maximum single part	1800mm*700mm
Surface Treatment	Polishing, brushing, electroplating, nickel plating, anodizing, etc.
Characteristics	Outstanding corrosion resistance Light-weight Very good strength and hardness Excellent thermal conductivity High electrical conductivity Burr free and clean Full recyclability

Application of Stainless Steel Photo Etching Metallic Bipolar Plate

Bipolar plates for proton exchange membrane fuel cells
Separators in electrolytic hydrogen production
Micro-reactors or heat exchangers
Prototype plates for laboratory R&D and small-batch production

Why choose Stainless Steel Photo Etching for Metallic Bipolar Plates?

Traditional stamping and laser processing face significant challenges when handling metal sheets thinner than 0.6mm:

Stamping: Requires expensive dies, introduces stress, causes deformation in thin materials, and incurs extremely high redesign costs
Laser cutting: Produces heat-affected zones and slag, potentially compromising material corrosion resistance, while offering relatively low processing efficiency

Our photochemical etching process perfectly resolves these issues:

Stress-free: Maintains sheet flatness
No heat affect zone: Preserves inherent material properties
High flexibility: Digital mask design enables rapid prototyping and low-cost conversion
Simultaneous double-sided processing: Etches distinct flow patterns on both sides of the sheet in a single operation

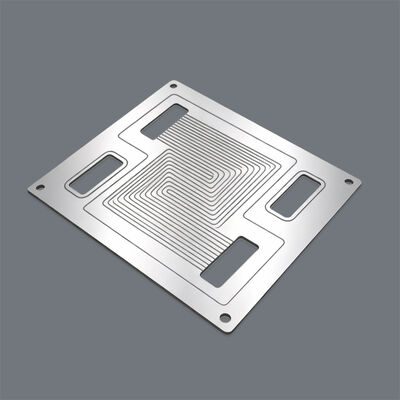

Different Shapes of Customizable Titanium Plates

Our Services

We provide not only products but also comprehensive solutions from design to manufacturing:

Design Support: Our engineering team assists in optimizing flow field design
Rapid Prototyping: Deliver samples within minimal lead times to accelerate your R&D timeline
Volume Production: Large-scale, high-consistency manufacturing capabilities
Post-Processing: Value-added services including cleaning, passivation, and conductive coatings

Would like to have a further discussion? Please click "CONTACT US" to share us your requirements.
