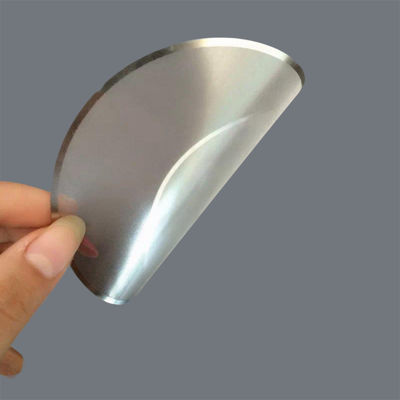

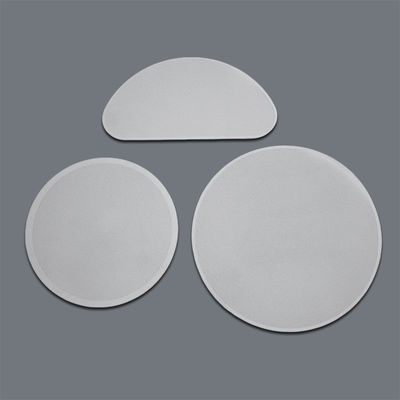

Photo Etching 0.03MM Thickness Ultra Fine Stainless Steel Filter Screen For Precison Filtration

Photo Etching 0.03MM Thickness Ultra Fine Stainless Steel Filter Screen For Precison Filtration

Nom De Marque:	XHS/ Customized
Numéro De Modèle:	Xhs / personnalisé
Nombre De Pièces:	10
Prix:	80-100USD
Conditions De Paiement:	T/T, Union occidentale
Capacité à Fournir:	10000-100000pcs / semaine

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

ISO9001 ISO14001

Durabilité:

Haut

Complexité:

Haut

Tolérance:

± 0,005 mm

Épaisseur:

0,02 mm-1,5 mm

Délai de mise en œuvre:

2-3 semaines

Taille:

Personnalisé

Précision:

Haut

Coût:

Faible

Détails d'emballage:

Sac PE, carton

Capacité d'approvisionnement:

10000-100000pcs / semaine

Mettre en évidence:

0.03mm stainless steel filter screen

ultra fine photo etch mesh

precision filtration stainless steel screen

Description du produit

Photo Etching 0.03MM Thickness Ultra Fine Stainless Steel Filter Screen For Precison Filtration

Our ultra-fine stainless steel filter screens are manufactured using advanced photo chemical etching technology, ensuring exceptional precision, uniformity, and consistency for demanding filtration applications.

With a thickness of only 0.03mm, these fine metal meshes provide high flow rates and accurate filtration performance, ideal for microfluidic, medical, and industrial filtration systems.

Unlike traditional punching or laser cutting, photo etching (chemical etching) removes metal through a controlled chemical process — achieving burr-free, stress-free and distortion-free filter screens with micron-level precision.3

Specifications of Photo Etching Filter Screen

Mesh dimensions:	Customizable to your design
Thickness:	0.02mm – 1.0mm
Aperture size:	Fully customizable per drawing
Surface finish:	Polished, coated, or bare metal

Available Materials for Photo Etching Filter Screen

Stainless Steel: SUS 304 / SUS 316 / SUS 316L / SUS 301
Nickel & Nickel Alloy
Copper & Brass
Titanium Foil
Other Special Alloys available upon request

Key Features

Ultra-Thin Precision: 0.03mm stainless steel for high flow and fine filtration accuracy.
High Precision Tolerance: ±0.01mm dimensional accuracy, consistent aperture size and geometry.
Burr-Free & Stress-Free: Etching process produces smooth edges and no mechanical deformation.
Customizable Aperture & Pattern: Round, square, slotted, or complex patterns available per drawing.
Corrosion & Heat Resistant: Made from premium stainless steel (304, 316L, 301, etc.).
Excellent Flatness: Ensures stable assembly and reliable sealing in filtration systems.

Typical Applications

Precision fluid filtration (medical devices, fuel cells, inkjet printers)
Microfiltration for sensors and microelectronics
Acoustic and speaker meshes
Microfluidic flow control components
Aerospace and automotive fine filtration systems

Why Choose Photo Etching for Filter Screens

No Tooling Stress: Chemical etching eliminates burrs and micro-cracks.
Complex Geometries Possible: Design freedom for intricate patterns.
Fast Prototyping & Low Cost: Ideal for both small and large production runs.
High Reproducibility: Each piece identical, ensuring stable performance.

Customization & Ordering

We provide OEM precision etching services — simply send us your CAD drawing or sample and our engineering team will develop a custom filter screen tailored to your specific flow and particle size requirements.
