Precision Etched Vapor Chambers for Advanced Thermal Management Solutions

Precision Etched Vapor Chambers for Advanced Thermal Management Solutions

Nom De Marque:	XHS/Customize
Numéro De Modèle:	Personnaliser
Nombre De Pièces:	10
Prix:	50-100USD
Conditions De Paiement:	T / t
Capacité à Fournir:	10000-100000pcd / semaine

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

ISO 9001, ISO 14001, IATF 16949

Taille:

Personnalisable

Compatibilité:

Convient aux appareils électroniques à haute puissance

Matériel:

Acier inoxydable de cuivre ou

Application:

Appareils électroniques, éclairage LED, équipement médical

Détails d'emballage:

Sacs et carton

Capacité d'approvisionnement:

10000-100000pcd / semaine

Description du produit

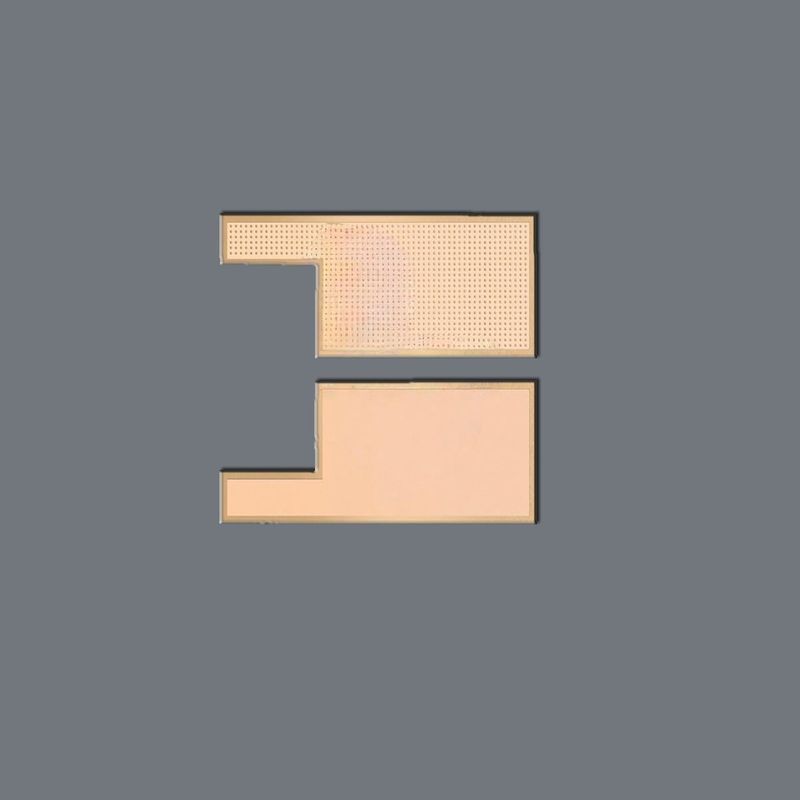

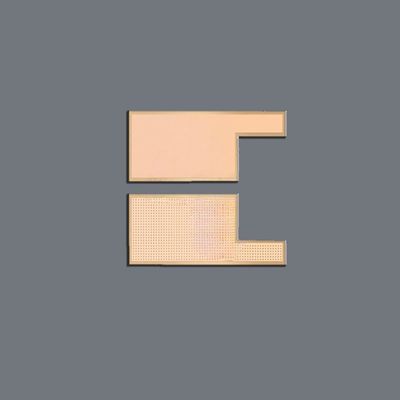

Precision Etched Vapor Chambers for Advanced Thermal Management Solutions

Vapor Chamber Overview

Vapor Chambers are advanced two-phase heat transfer devices designed for efficient thermal management in high-power and space-constrained applications. They provide superior heat dissipation through phase-change principles, making them essential in modern electronics thermal design.

Vapor Chamber Key Feature

·Ultra-Thin Design: Thickness options as low as 0.3mm.

·High Thermal Conductivity: Up to 5–10 times greater than solid copper.

·Uniform Heat Spreading: Effective full-plane temperature equalization.

·Customizable Shapes: Flexibility in design to fit specific device layouts.

·Lightweight & Durable: Constructed with copper or hybrid materials.

·Precision Etched Structures: Micro-channel and support pillar designs optimized for capillary action and vapor flow.

Technical Parameters

Parameter	Value Range
Material	Copper, Stainless Steel
Max. Size	Up to 400mm x 400mm
Operating Temperature	-40°C to 200°C
Flatness Tolerance	As fine as 0.03mm
